Right-angled triangles are everywhere - from the ladders you climb...
Mathematics5 megtekintések·Frissítve Jun 11, 2026·9 oldalMaster Trigonometry: Learn SOHCAHTOA for Real-Life Problems
1 / 9
1
of 9

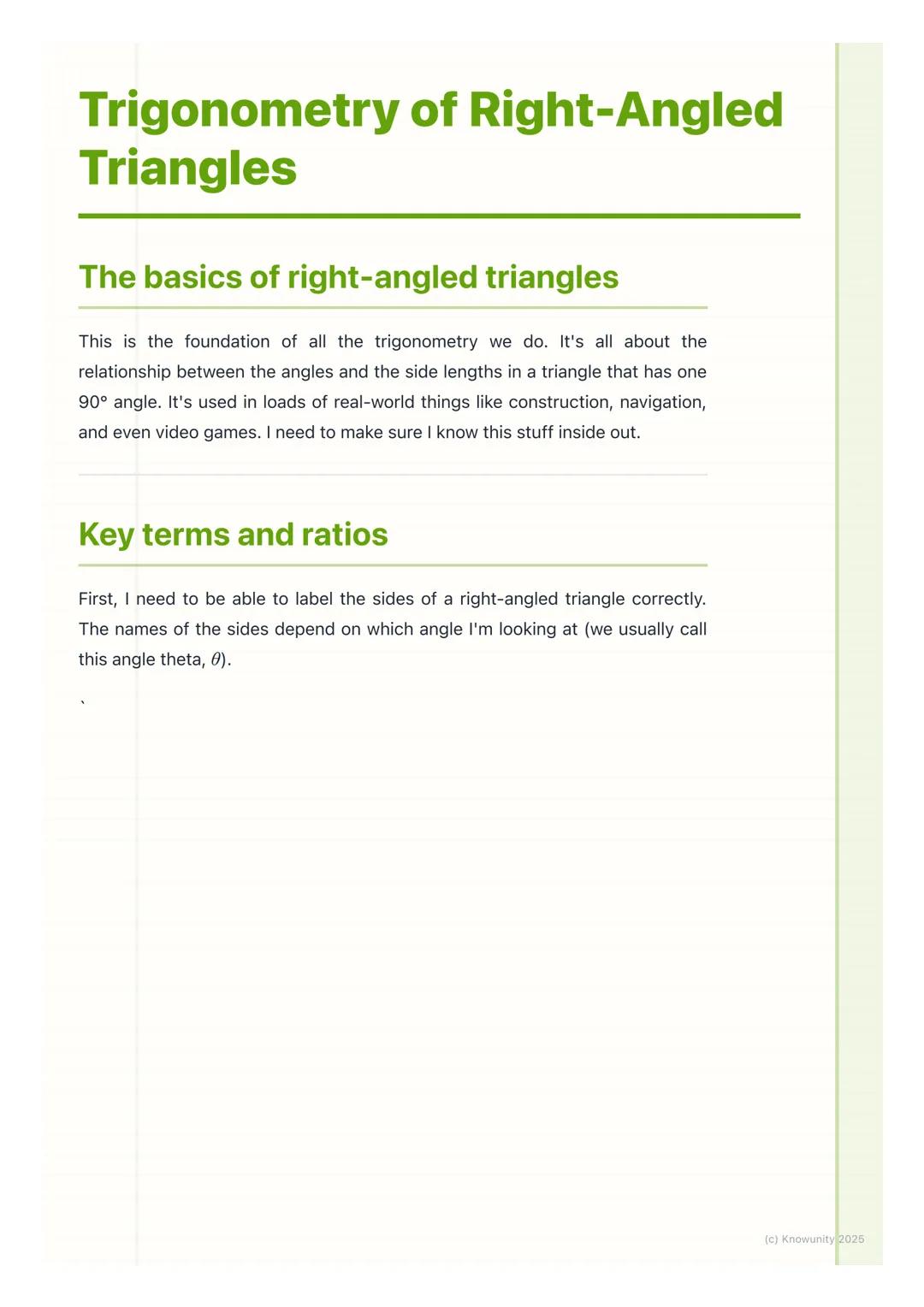

The Basics of Right-Angled Triangles
You'll use trigonometry in loads of practical situations like construction, navigation, and even video game design. The key is mastering the relationship between angles and side lengths in triangles with one 90° angle.

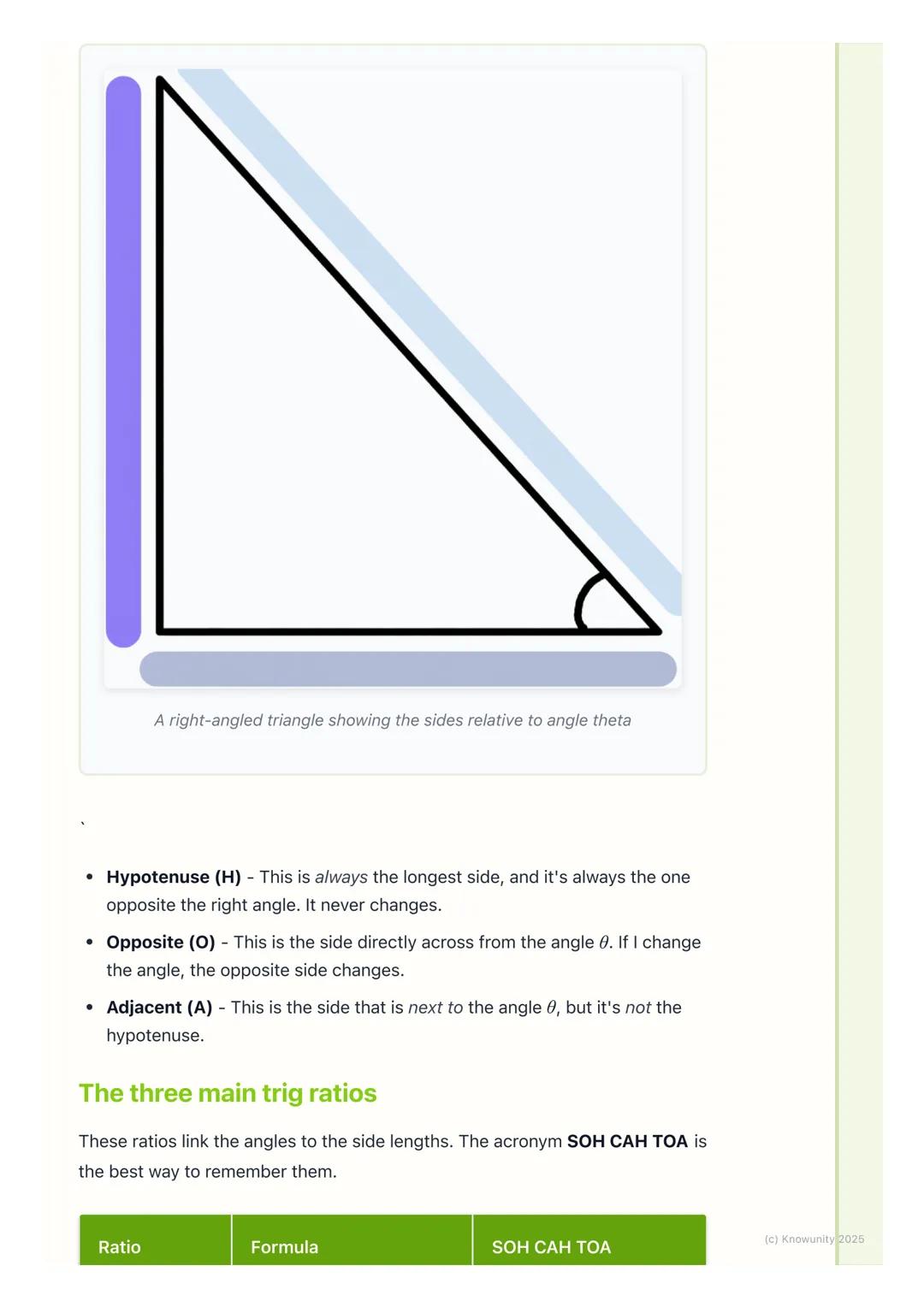

Getting the labelling right is absolutely crucial. The side names depend on which angle you're focusing on (usually called theta or θ). The hypotenuse is always the longest side opposite the right angle - that never changes.
The opposite side sits directly across from your angle θ. If you change the angle, the opposite side changes too. The adjacent side is next to angle θ, but it's not the hypotenuse.
Key Tip: Always label your triangle sides before attempting any calculation - this prevents costly mistakes!
2
of 9

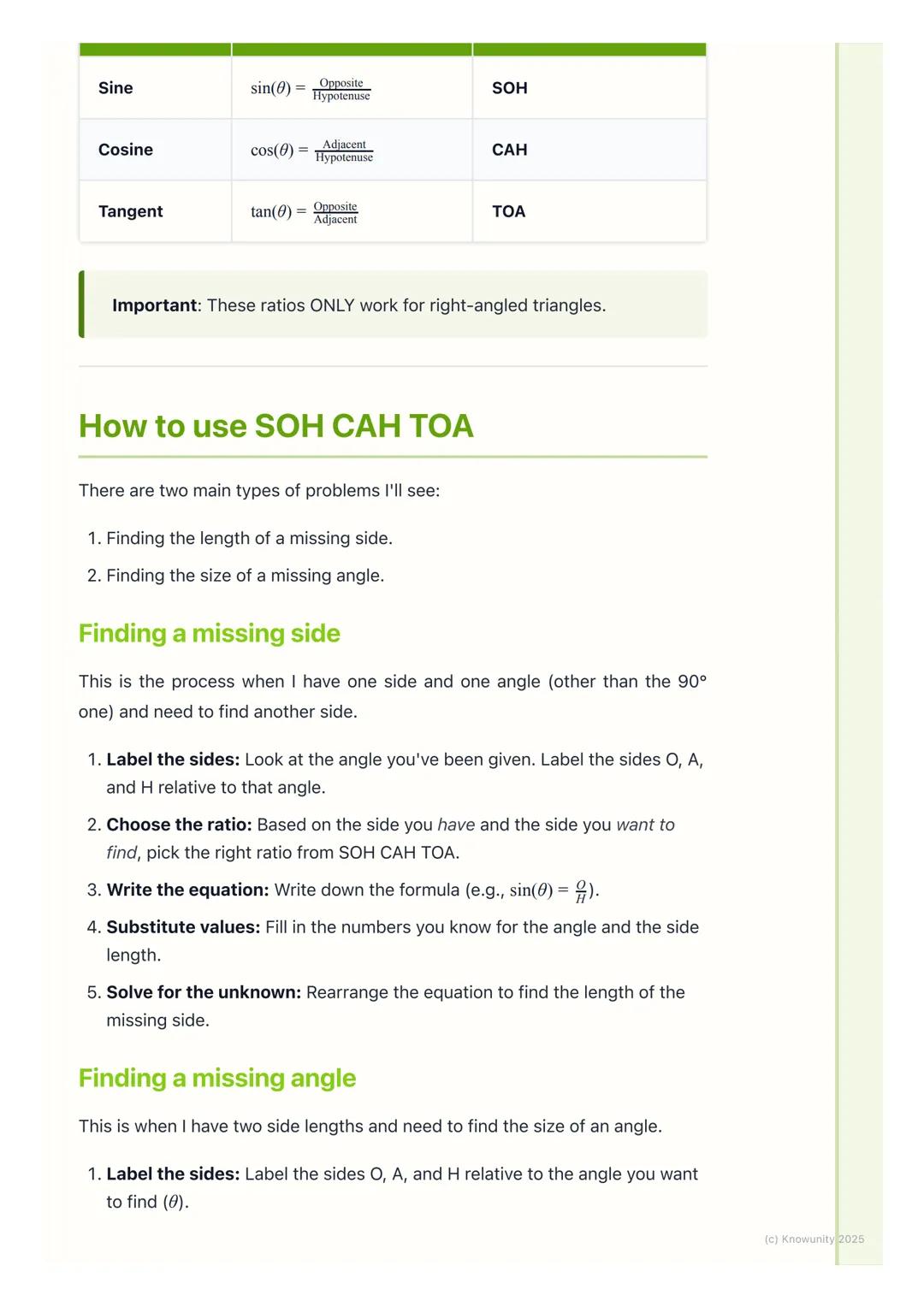

SOH CAH TOA - Your Best Friend
SOH CAH TOA is the magic acronym that'll save you in every exam. It represents the three main trigonometric ratios that link angles to side lengths.
SOH means sin(θ) = Opposite/Hypotenuse. CAH means cos(θ) = Adjacent/Hypotenuse. TOA means tan(θ) = Opposite/Adjacent.
These ratios ONLY work for right-angled triangles - don't try using them elsewhere! You'll encounter two main problem types: finding missing sides and finding missing angles.
Remember: These ratios are your toolkit for solving any right-angled triangle problem you'll face.
3
of 9
Finding Missing Sides
When you've got one side and one angle (besides the 90° one), finding another side becomes straightforward with the right approach.
Follow this foolproof process: Label the sides O, A, and H relative to your given angle. Choose the correct ratio from SOH CAH TOA based on what you have and what you need. Write the equation and substitute your known values.
Finally, solve for the unknown by rearranging the equation. For example, if sin(35°) = x/12, then x = 12 × sin(35°) = 6.9 cm.
Pro Tip: Always double-check your labelling - mixing up opposite and adjacent is the most common mistake students make.
4
of 9

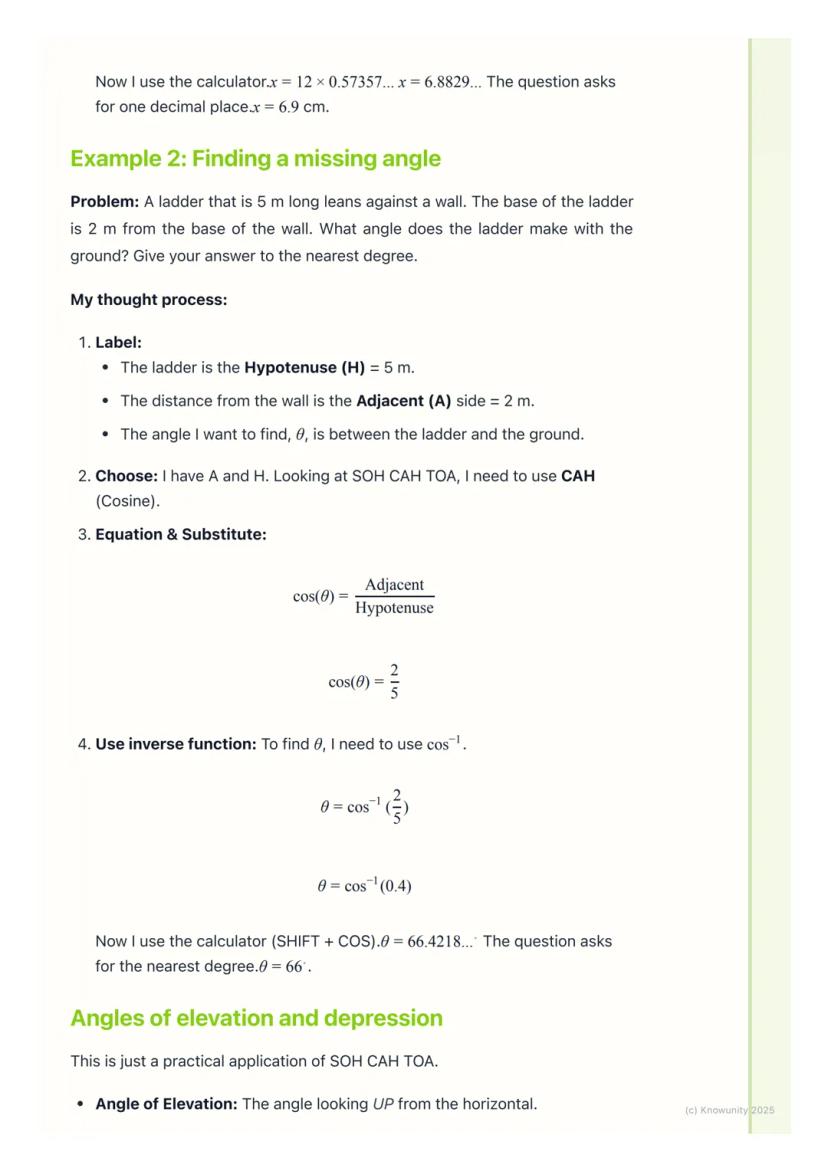

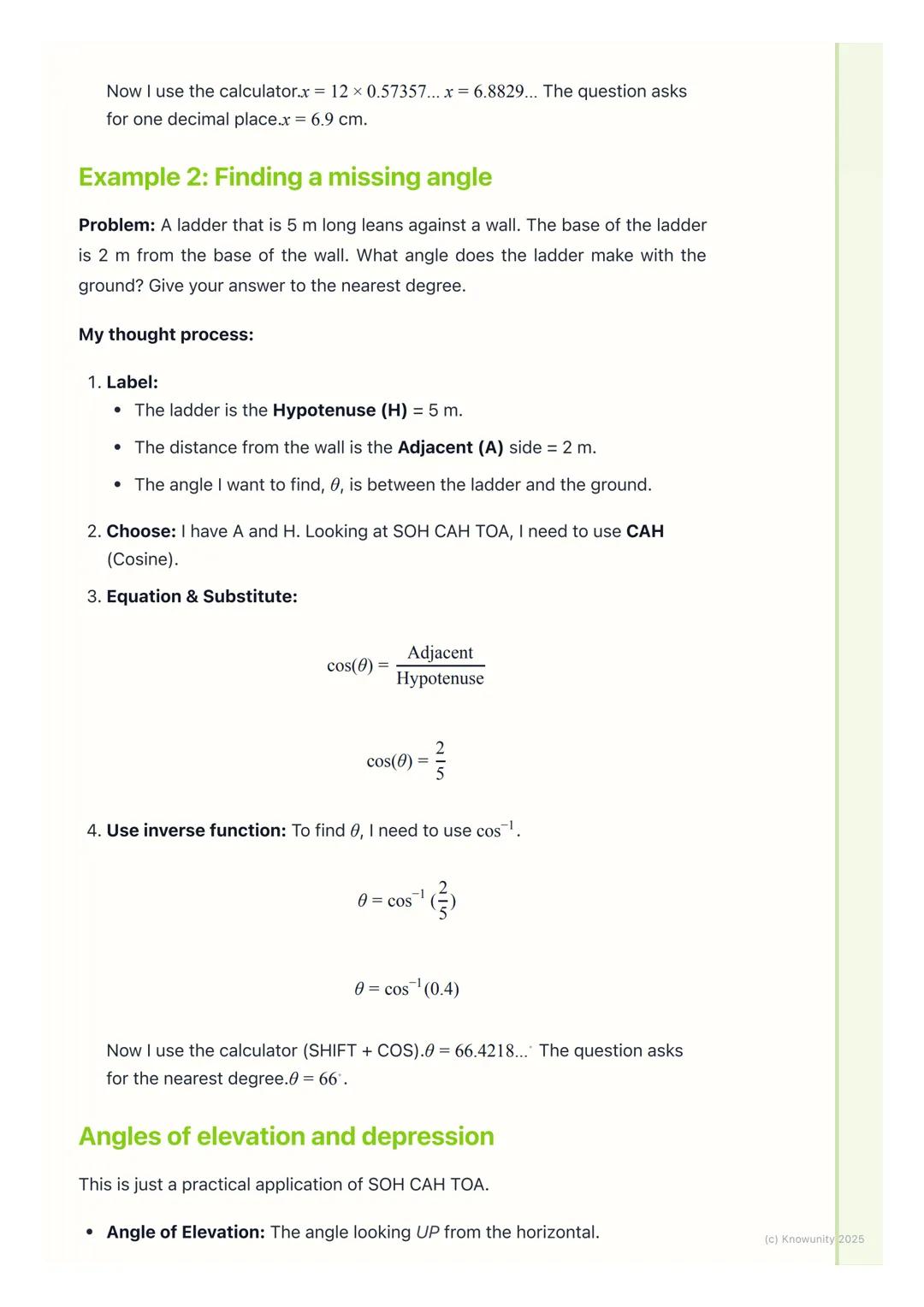

Finding Missing Angles

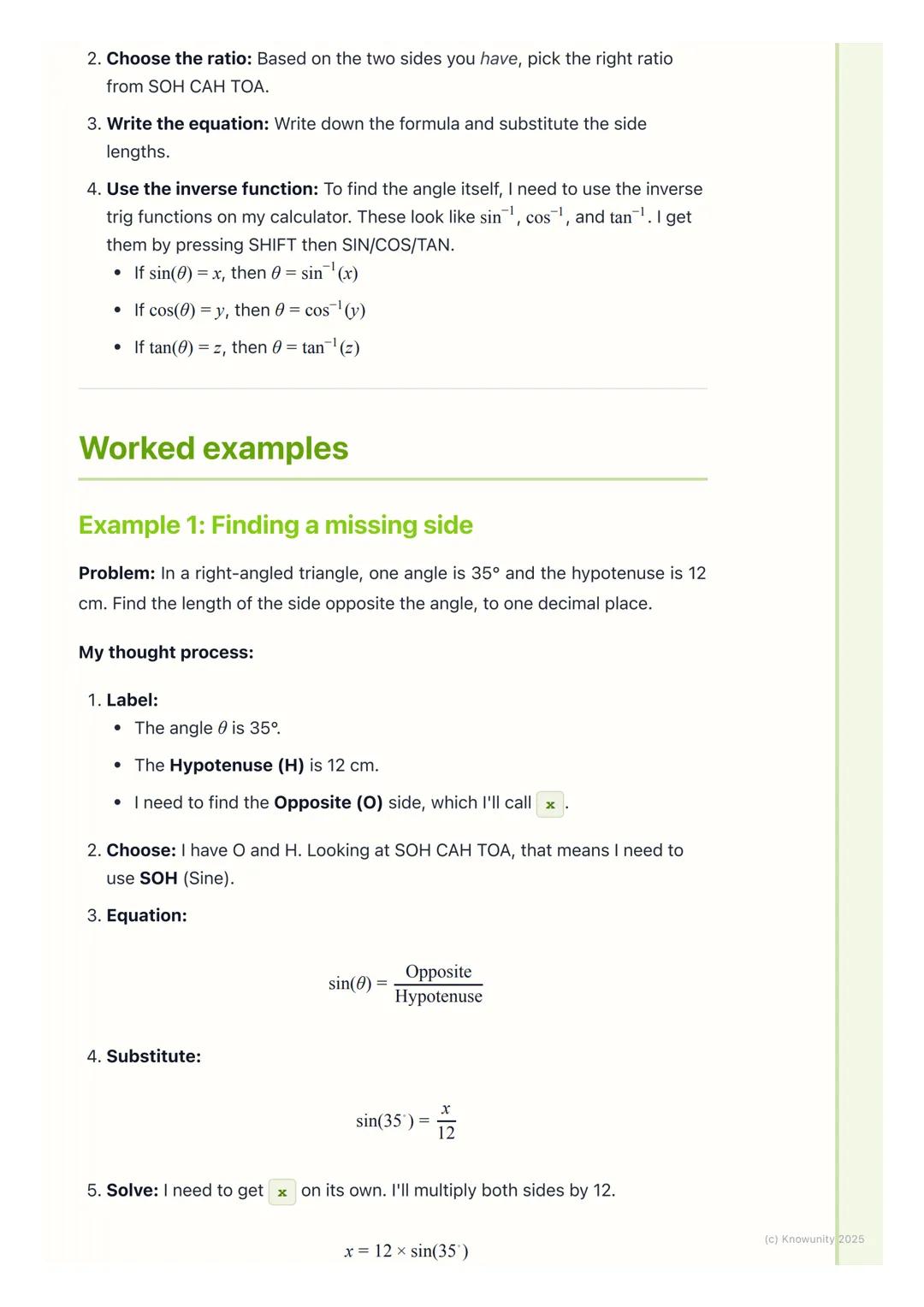

Working backwards from two known sides to find an angle requires inverse trigonometric functions. These appear as sin⁻¹, cos⁻¹, and tan⁻¹ on your calculator.
Start by labelling your sides and choosing the right ratio from SOH CAH TOA. Write your equation and substitute the side lengths you know.
To find the actual angle, use the inverse function. If cos(θ) = 2/5, then θ = cos⁻¹(2/5) = 66°. Access these functions by pressing SHIFT then the relevant trig button.
Calculator Alert: Make sure you're in DEGREE mode, not radians - this mistake costs students loads of marks!
5
of 9

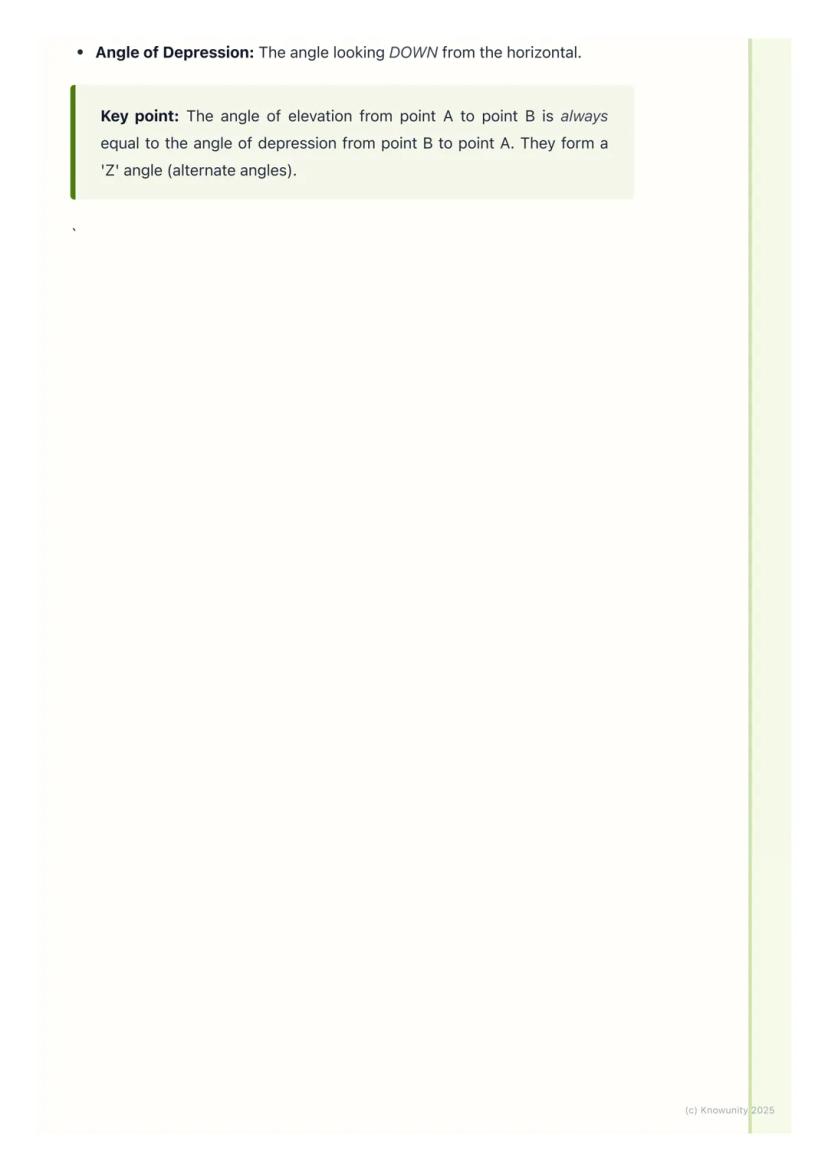

Angles of Elevation and Depression
These concepts bring trigonometry into real-world scenarios you'll actually encounter. Understanding them makes word problems much easier to tackle.

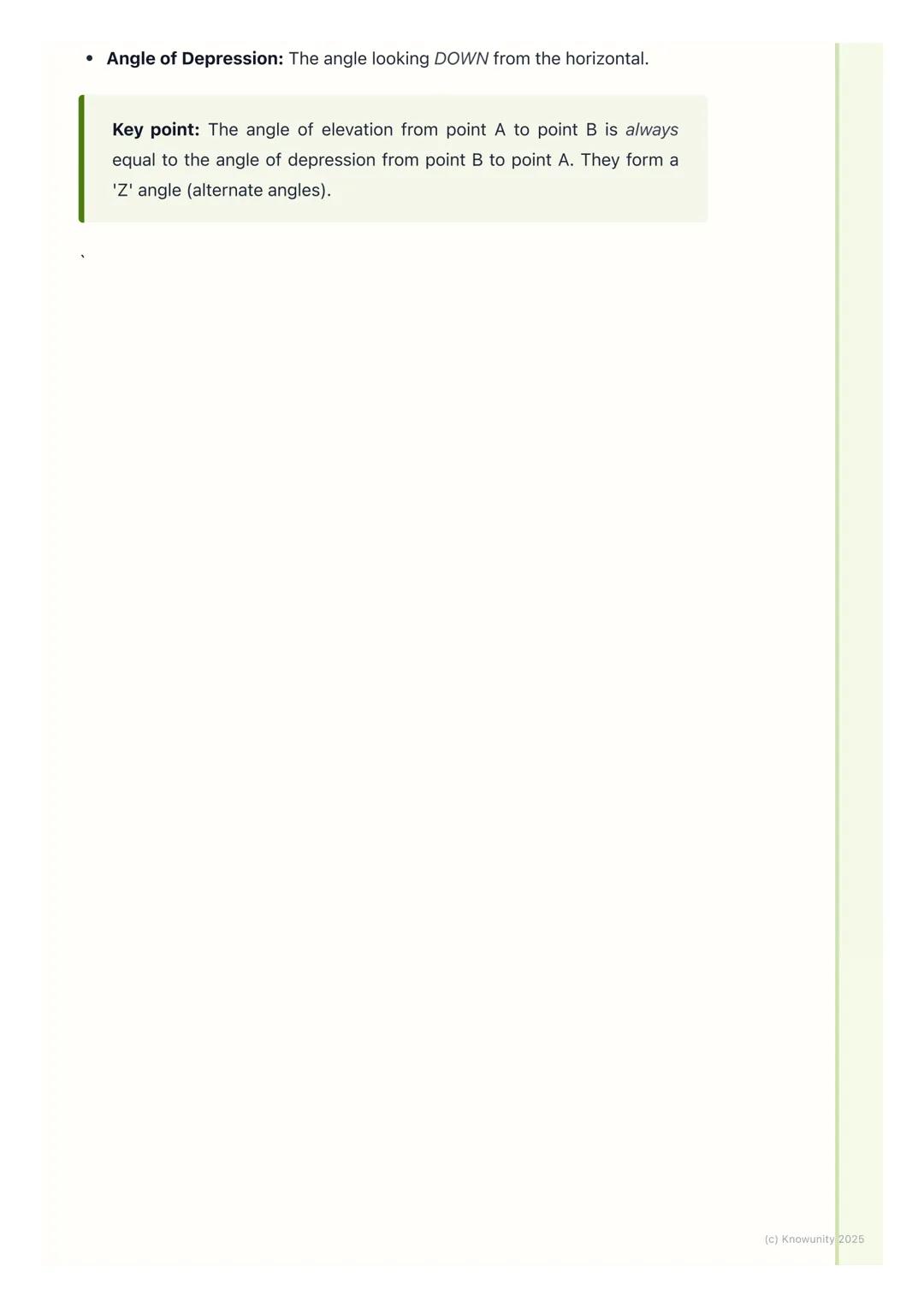

The angle of elevation is when you're looking UP from horizontal - like viewing the top of a building from ground level. The angle of depression is looking DOWN from horizontal - like a pilot viewing the ground.
Here's a neat fact: the angle of elevation from point A to point B always equals the angle of depression from point B to point A. They form alternate angles in a 'Z' pattern.
Real-World Connection: These angles are used in surveying, aviation, and architecture - skills that translate directly to careers!
6
of 9

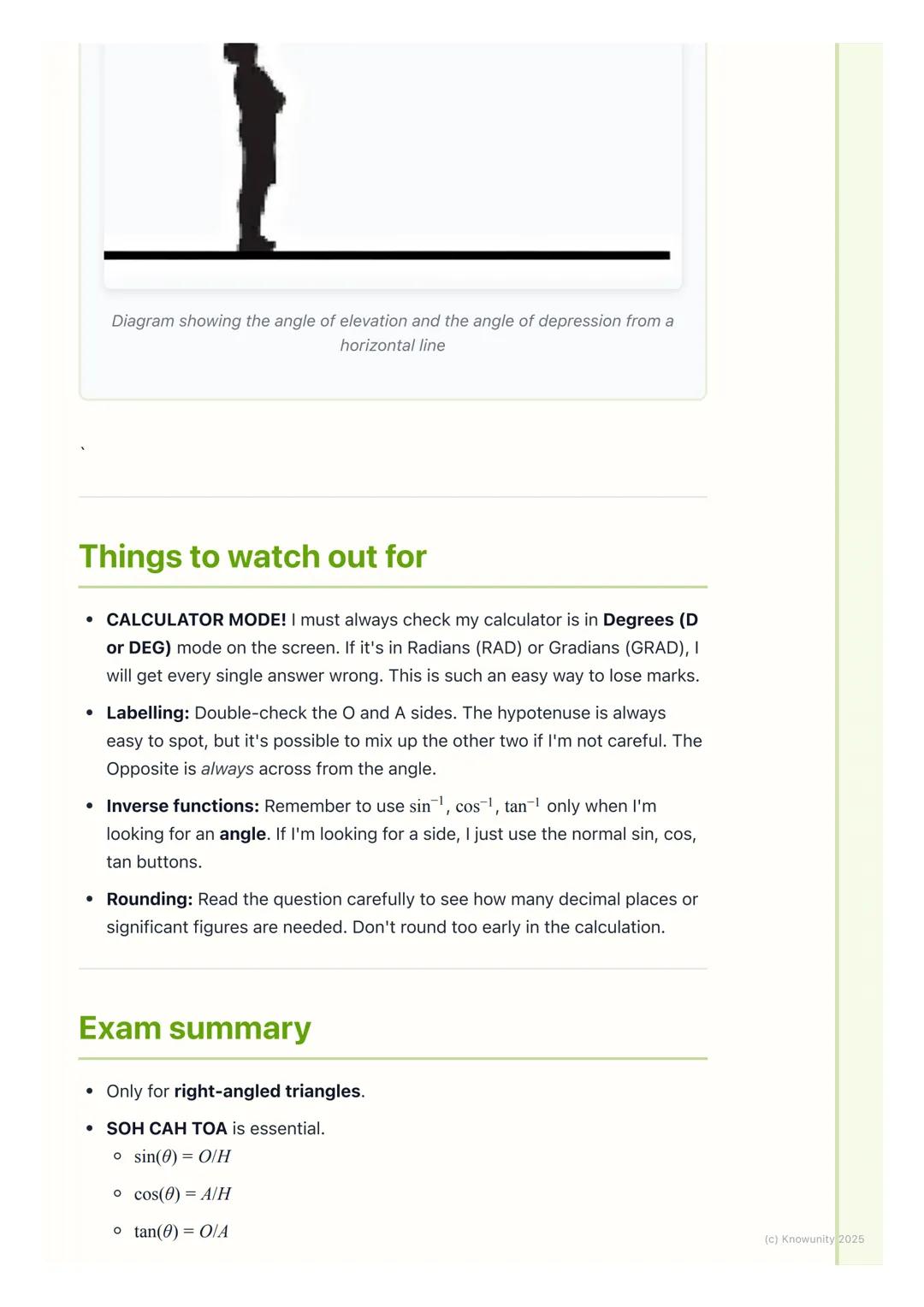

Common Pitfalls and Exam Tips
Your calculator mode can make or break your exam performance. Always check you're in DEGREES mode (look for D or DEG on screen). Being in radians or gradians will give you completely wrong answers.
Double-check your side labelling every time. The hypotenuse is easy to spot, but mixing up opposite and adjacent sides is surprisingly common. Remember: opposite is always across from your angle.
Use inverse functions (sin⁻¹, cos⁻¹, tan⁻¹) only when finding angles, not sides. Read questions carefully for rounding instructions, and don't round until your final answer.
Exam Success: These basic checks will save you more marks than learning complex techniques - master the fundamentals first!
7
of 9
8
of 9
9
of 9
